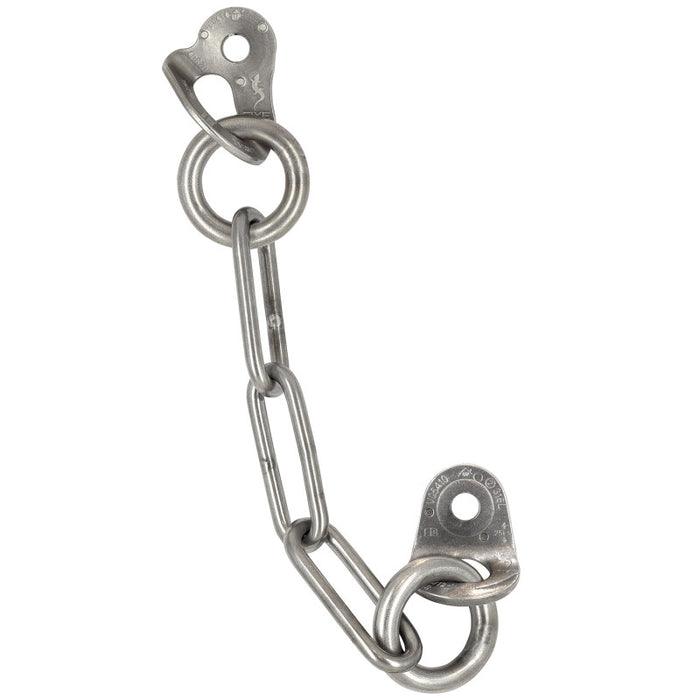

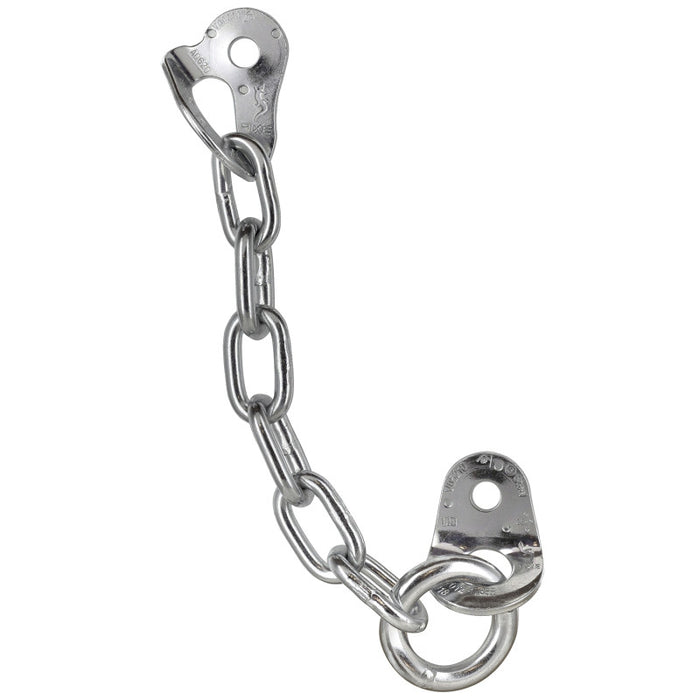

Fixed deflection chain for climbing wall Galvanized or stainless steel, M10 or M12

D-Bumper in 316L stainless steel suitable for outdoor use / Eco-Tri galvanizing suitable for indoor use.
Two attachment points consisting of a bolt bracket Fixe1 above and Fixe2 below, both suitable for M10 / M12 screws.
Deflector with ring Designed and manufactured in Barcelona-Pyrenees.
COMPONENT FEATURES Geometry of the Fixe 1 - Bolt loop: Rounded inner part for easier wear of the carabiners.
Carabiner orientation to achieve optimal roof work, conical washer. More control over tightening torque.
Three anti-rotation pins. Surface optimized for better contact.
Properties of the Fixe 1- bolt lug: Weight: 57g (10mm) / 56g (12mm). For screws M10 / M12. Breaking strength: 25kN. Material: Galvanized Eco-Tri Steel / 316L Stainless Steel.
Properties of the Fix e 2 - bolt shackle: Point of contact in an oval shape. Build life extended. Conical Washer. Improvement in tightening torque. Three anti-rotation pins.
For screws M10 / M12. Breaking strength: 25kN. Material: Available in Zinc Plated Eco-Tri / 316L Stainless Steel.
Ring Features: Ring between components for even better maneuverability. TIG welding. Better corrosion resistance. Inner diameter 33mm. Breaking strength: 25kN.
Material: galvanized Eco-Tri / 316L stainless steel. 316L Stainless Steel Chain Features: TIG Welding. Better corrosion resistance.
Reduction of the number of links to three. Less critical points.
Diameter of the sliding rod of 7mm. Useful length: 185mm. Breaking strength: 25kN. Material: 316L stainless steel.
Properties of the galvanized Eco-Tri stainless steel chain: Diameter of the chain links: 7mm. Useful length: 185mm. Breaking strength: 25kN. Material: galvanized Eco-Tri steel.

Technical information:

• Eco-Tri galvanizing
• Brand: FIXE
• EAN13: 8436020031601
• Gender: Steel
• Colour: Ecotri
• Materials: steel
• Diameter: 10mm
• Packaging unit: individual
• Weight: 376g
• Item net weight: 376g
• CEN standard: EN795:2012, EN959:2018,
• Breaking strength: 25kN
